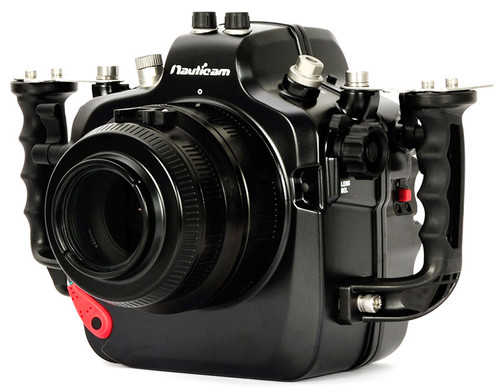

The award winning Nauticam design team has tackled the challenges of this housing with all the commitment, ingenuity and excellence befitting these extraordinary cameras. In so doing, they have achieved the extraordinary – a housing that melds shooter and camera as never before. Shooting the NA-1DX together with the EOS-1D X is at once brilliantly unique, yet intuitive to operate. Every control is conceived, designed, and placed where the shooter needs it. The design anticipates use, form becomes function and the whole system beckons the shooter to exceed what they previously thought possible.
While pushing the design envelope, what was already the best is still retained. The universally recognized innovations of recent Nauticam housings are obvious with the easy and secure latching system, unrivalled port locking lever system and the superb interchangeable viewfinders. The ergonomic thought process of previous housings is evident, and the Nauticam design refinement moves ever forward, always improving.
The future is now, the housing is here and the possibilities are unlimited.
Creative Potential at Your Fingertips.
The NA-1DX puts the controls that matter where they can readily be used – no awkward reaches are required for any key controls. Gripping the familiar rubberized handles is just the beginning of the connection that unfolds between photographer and housing. Without releasing the grip, the right forefinger simply activates Nauticam’s patented two-stage shutter release. Both the top and rear command dials are uniquely located on the side of housing – easily reached without removing the hand from the grips. The right thumb can quickly activate a new double paddle lever assembly engaging the record function on top and the AF-ON feature on the bottom lever.
The ISO control borrows from the brilliant NA-5DMKIII housing with a lever easily reached by the thumb on the right hand – again without removing the hand from the grip. This critical development substantially enhances video capability, as ISO variation is essential to video exposure control.
Unlocking the 1DX’s Power.
Of course the key controls are covered – precisely placed two-stage shutter release: check. Command dials right at the fingertips: check. AF-ON located where it is easily activated without removing finger from the shutter: check. ISO available without moving the hand: check. But Nauticam doesn’t just stop with the primary controls. Every control is given careful consideration. For example, AF Point Selection and the important programmable “*” button are moved up and to the right to make them easier to reach with the right thumb. The Quick Mode and Set buttons get Nauticam’s legendary piano keys. Menu is made easy to reach with the left hand, with Info and Playback on a double paddle (similar to the paddles on the right side), making image review, including histogram, available without removing the left hand from the grip.
The camera features a joystick that some other manufacturers might choose to ignore given the difficulty to design a control for it. Not only did Nauticam’s designers master this control, but were even able to move its complex functionality closer to the right hand to make it usable for the underwater shooter. This joystick is needed for panning while zoomed in during playback, and the NA-1DX’s five-button solution for the control makes checking details with panning not only possible, but easy.
All of these ergonomic refinements are in pursuit of one goal: The most ergonomic underwater imaging system possible. Nauticam NA-1DX allows the camera operator to access all key camera controls with his or her hands on the handles and their eye on the viewfinder or external video monitor.
Nauticam has also put considerable effort into features that allow easier camera loading. No controls require pre-setting before installing a camera into the housing, eliminating the possibility of wasted dives due to incorrect camera installation. Professional grade means being ready when you are.
Standard Features That Are Anything But Standard.
Nauticam pioneered numerous engineering breakthroughs in previous housings that have been integrated into NA-1DX. The housing Locking Latch System has received acclaim worldwide for its ease and functionality. These recessed latches are equipped with safety locks to eliminate accidental opening, yet require minimal hands strength to operate. These locking latches will not pinch fingers like stainless steel buckles can.
Port changes have never been simpler than utilizing the Patented Nauticam Locking Port Release. No wrestling, no twisting, no misalignment – just seat and lock. Lens changes are also easily accomplished without removing the camera from the housing via the lens release button logically accessed on the housing front.
The lightweight, rugged Nauticam handles are generously contoured with a durable over-mold process of comfortable non-slip soft touch rubber. Virtually any hand size can be accommodated with spacers available for cold-water glove use.
All Nauticam housings are machined from a solid block of seawater resistant aluminum alloy and then hard anodized making them impervious to corrosion. Hardware is marine grade stainless steel.
- Patented Locking Port Release Leve
- Depth Rating
- 359mm (W) × 233mm (H) × 144mm (D)
- Port Opening
